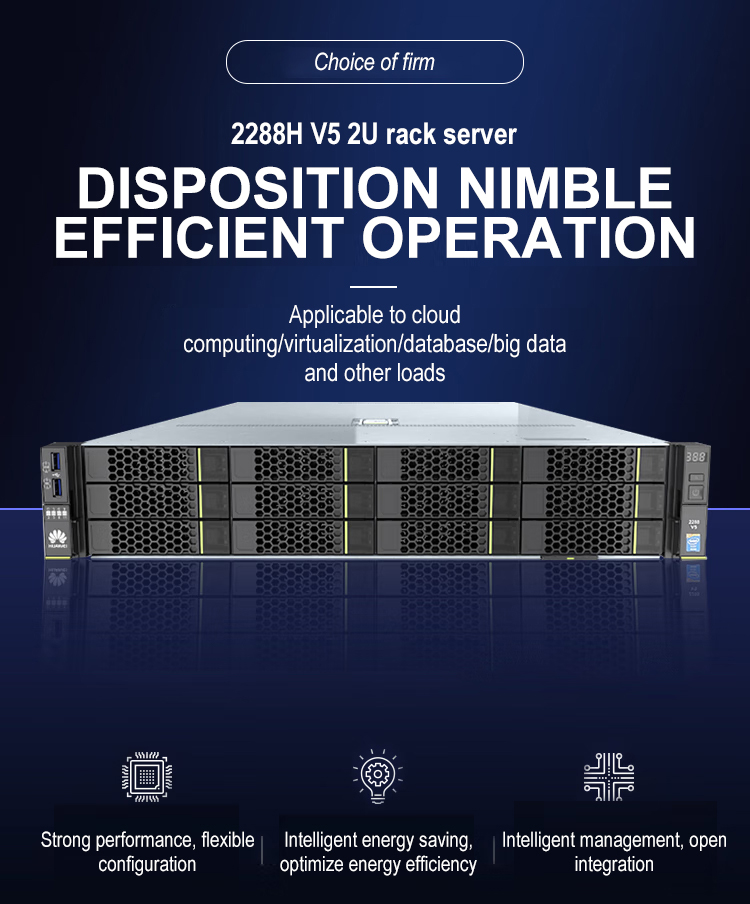

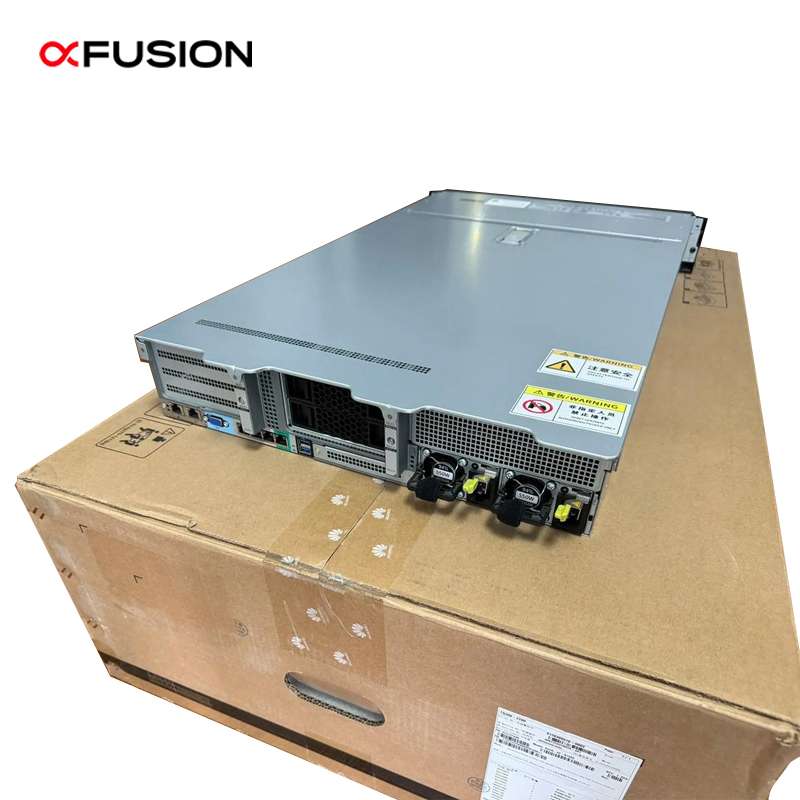

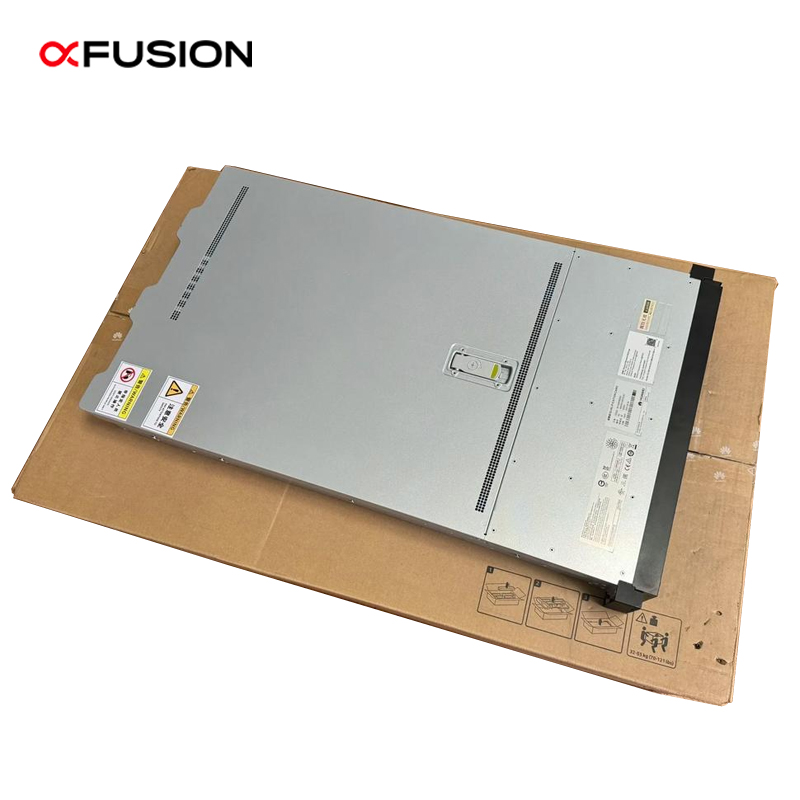

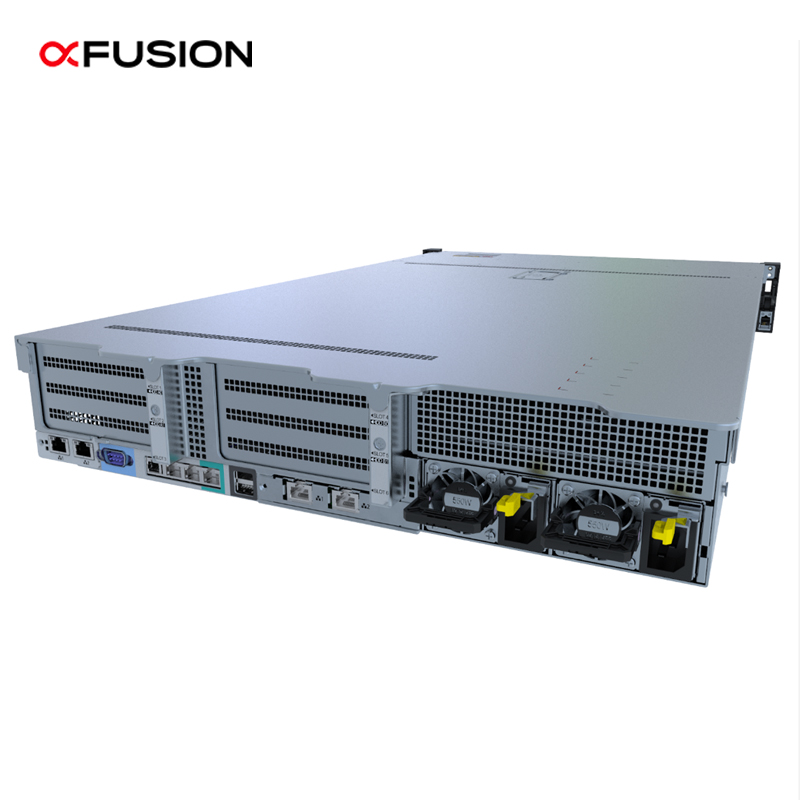

| Server Model | FusionServer 2288H V5 |
| Form Factor | 2U, 2-socket rack server |
| Processors |
1/2 x 1st Gen Intel® Xeon® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W 1/2 x 2nd Gen Intel® Xeon® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W |
| Local storage |

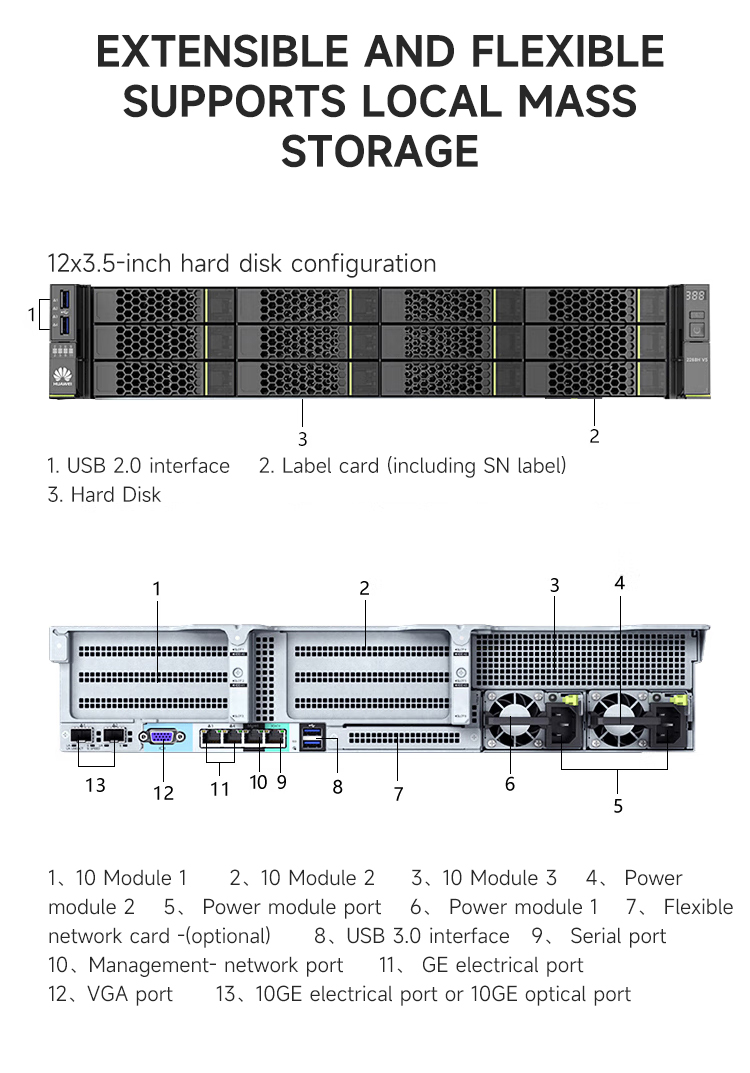

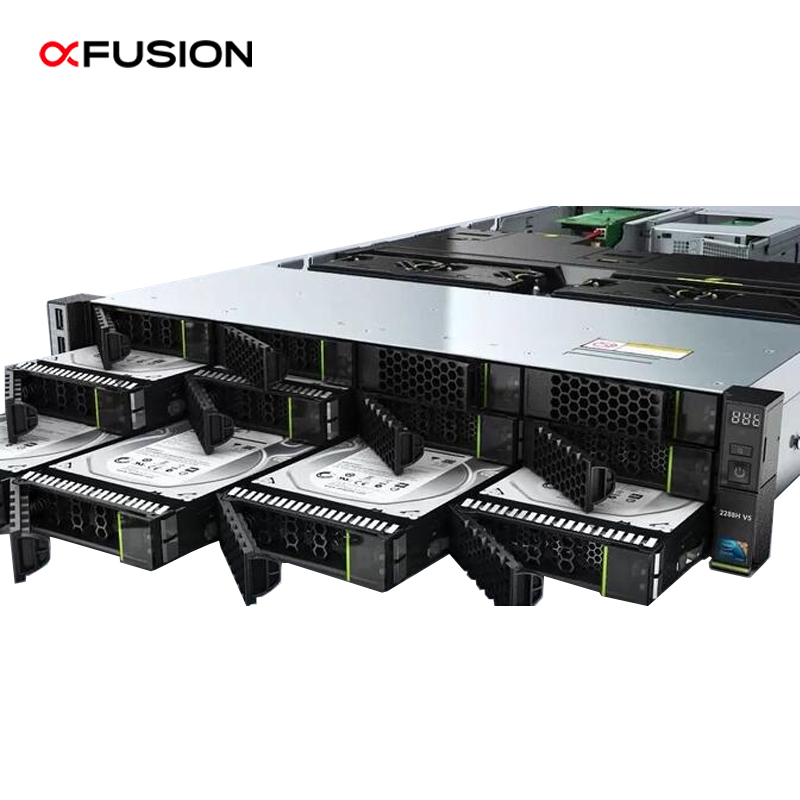

Supports a variety of different hard disk configurations, with support for hot swapping: • Configurable with 8/20/24/25/31 x 2.5-inch SAS/SATA/SSD hard drives • Configurable with 12/16/20 x 3.5-inch SAS/SATA hard drives • Configurable with 4/8/12/24/28 NVMe SSD hard drives Support Flash storage: • Dual M.2 SSDs |
| RAID support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc. Supports Cache supercapacitor protection, and provides RAID level migration, disk roaming, self-diagnosis, web remote setting and other functions. |
| Internet |
On-board NIC: 2 x 10GE ports and 2 x GE interfaces Flexible card: 2 x GE or 4 x GE or 2 x 10 GE or 2 x 25 GE or 1/2 x 56G FDR IB interface |
| PCIe Expansion | Up to 10 PCIe 3.0 expansion slots, including 1 PCIe expansion card for RAID cards and 1 flexible LOM card |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Dimensions (HxWxD) |
3.5-inch hard disk chassis: 86.1mm x 447 mm x 748 mm 2.5-inch disk chassis: 86.1mm x 447 mm x 708 mm |
| Power Supply Units |

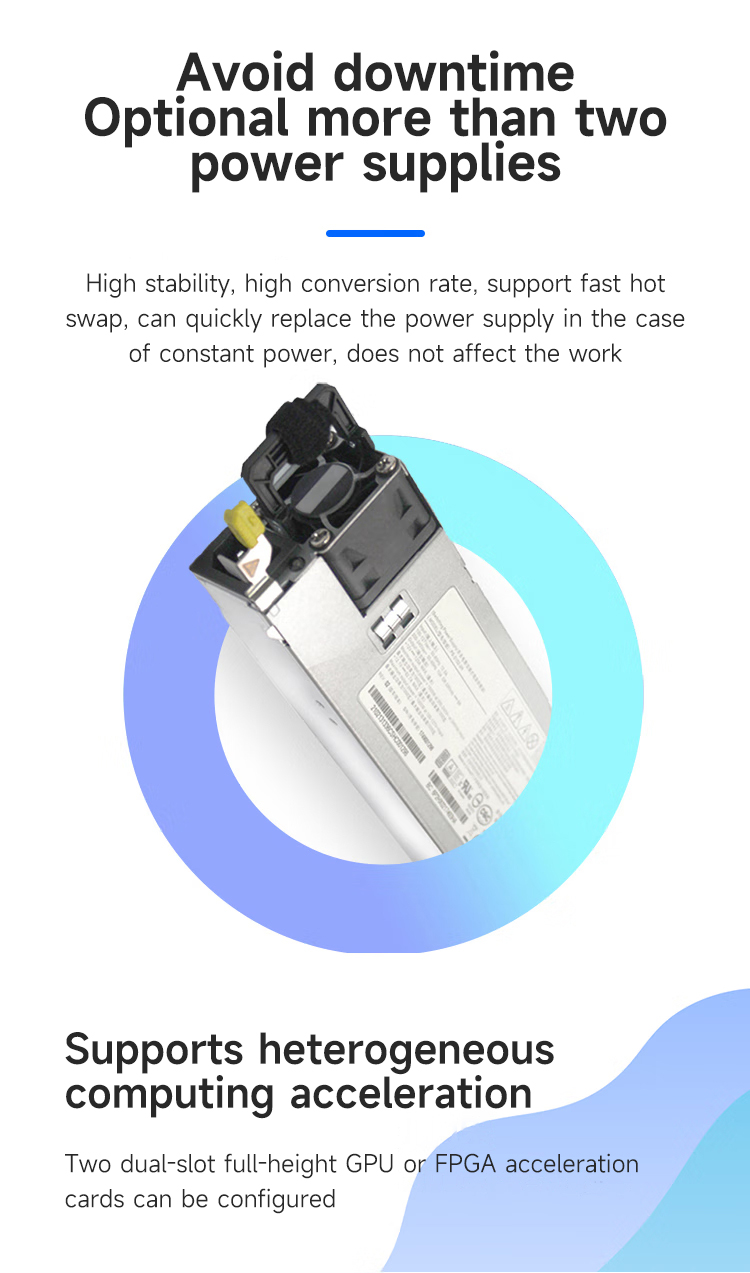

2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs |
