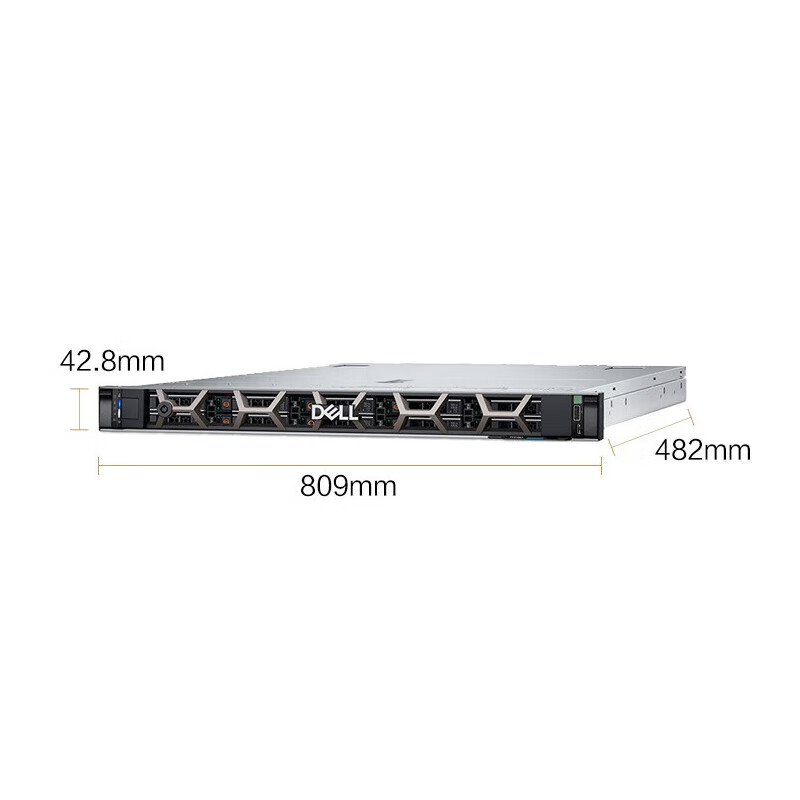

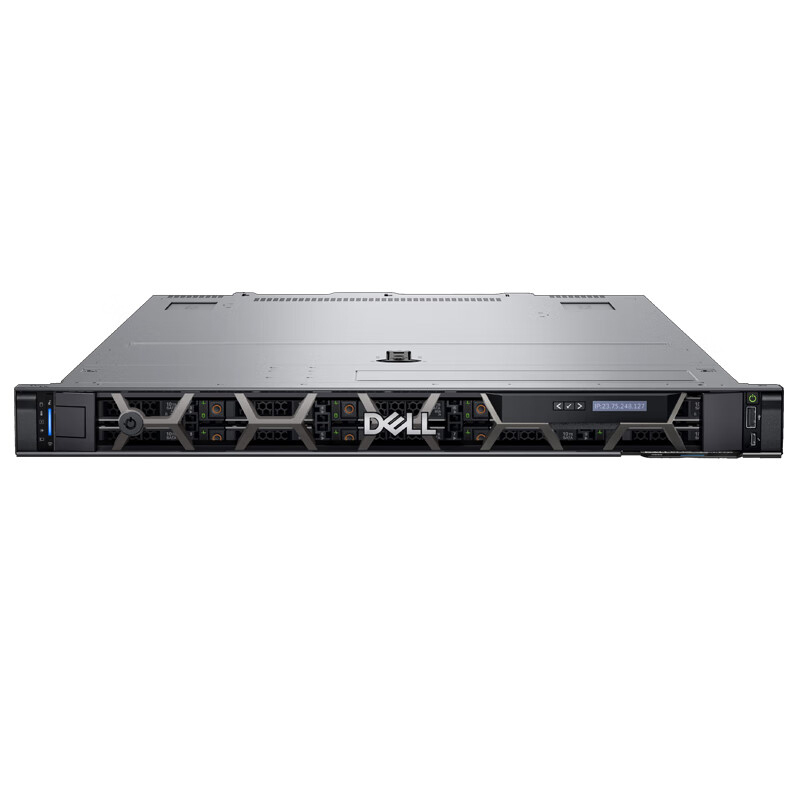

| Server Model | Dell Poweredge R660XS Server |
| Processor | Up to two 4th Generation Intel Xeon Scalable processors, with up to 56 cores and optional Intel® QuickAssist Technology |
| Memory | 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only |
| Storage controllers | • Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB • External HBAs (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays | Front bays: • Up to 10 x 2.5-inch, SAS/SATA/NVMe (HDD/SSD) max 153.6 TB • Up to 8 x 2.5-inch, SAS/SATA/NVMe, (HDD/SSD) max 122.88 TB • Up to 14 x E3.S (Gen5 x NVMe) max 179.2 TB • Up to 16 x E3.S, (Gen5 x NVMe) max 204.8 TB Rear bays: • Up to 2 x 2.5-inch,SAS/SATA/NVMe, max 30.72 TB • Up to 2 x E3.S (Gen5 x NVMe), max 25.6 TB |
| Embedded Management | Front bays: • Up to 10 x 2.5-inch, SAS/SATA/NVMe (HDD/SSD) max 153.6 TB • Up to 8 x 2.5-inch, SAS/SATA/NVMe, (HDD/SSD) max 122.88 TB • Up to 14 x E3.S (Gen5 x NVMe) max 179.2 TB • Up to 16 x E3.S, (Gen5 x NVMe) max 204.8 TB Rear bays: • Up to 2 x 2.5-inch,SAS/SATA/NVMe, max 30.72 TB • Up to 2 x E3.S (Gen5 x NVMe), max 25.6 TB |
| Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
| Embedded NIC | 2 x 1 GbE LOM card (optional) |
| Network options | Up to 3 x 75 W SW |
| Rack height (U) | Rack height (U) |
| Warranty | 3 Years |
